DeltaTRAK Pulse / Temperature LoggerPT3
  • 儀器名稱：Pulse / Temperature Logger
  • 儀器品牌：DeltaTRAK
  • 儀器型號：PT3
  • 送貨時間：48小時內
  • 標準價格：不詳
  • 本站售價：洽詢
  • 關鍵參數：Pulse / Temperature Logger,The DeltaTRAK PT3 is a versatile data logger designed for easy counting and recording of switch contact closures voltage pulses. It has two input channels.
加入購物車 加入收藏夾 無軟件下載 無資料下載 廠商介紹

性能參數介紹

軟件下載：       無

資料下載：        無

產品介紹

PT3

Pulse / Temperature Logger

Model 20503, PT3 Pulse Temperature Logger, Electronic Multifunction Data Logger,

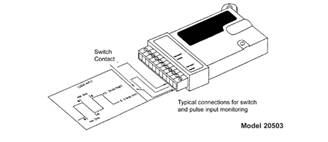

The DeltaTRAK PT3 is a versatile data logger designed for easy counting and recording of switch contact closures voltage pulses. It has two input channels
each with three selectable frequency ranges.

Applications: Monitoring flow conditions, energy use, wind speed, RPM, and environmental conditions.

SPECIFICATIONS:


No. of channels: Three. (One internal thermistor and two external inputs for externally generated pulse signals or dry switch contact closures)
Ranges: 32 pulses/second; 64 pulses/second; 128 pulses/second
Minimum pulse width: 4 milliseconds
Switch Contact Closure Input: Input type: Uncommitted switch or relay contacts.
Logic Inputs: Logic type: Active logic signals. Input voltage: Low= 0 to 0.5 volts (DC). High= 4.5 to 24 volts (DC).
Input Impedance: 750 K ohms.
