DeltaTRAK 900 MHz Ethernet ReceiverFlashLink? Wireless
- 儀器名稱:900 MHz Ethernet Receiver
- 儀器品牌:DeltaTRAK
- 儀器型號:FlashLink? Wireless
- 送貨時間:48小時內
- 標準價格:不詳
- 本站售價:洽詢
- 關鍵參數:FlashLink? Wireless is a wide area, real-time monitoring, recording and alarm system with user-defined set up, continuous monitoring and complete management reporting for temperature and humidity.
性能參數介紹
軟件下載: 無
資料下載: 無
產品介紹

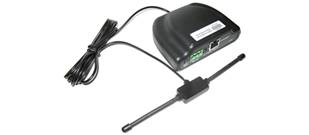

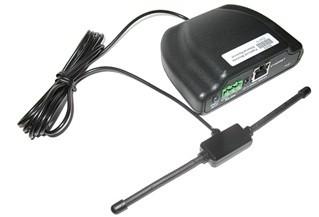

FlashLink? Wireless
900 MHz Ethernet Receiver
FlashLink? Wireless is a wide area, real-time monitoring, recording and alarm system with user-defined set up, continuous monitoring and complete management reporting for temperature and humidity.
900 MHz receiver communicates to host via ethernet static or dynamic IP Identification
Receives sensor readings from up to 130000 feet (396 meters) away
Receives signals from up to 100 sensors
Data recorded and managed with FlashLink Wireless Manager Software
Model 20158 FlashLink Wireless 900 MHz Ethernet Receiver | |
DeltaTRAK manufactures products under an ISO 9000 registered quality management system | |
Enclosure (Casing) |
High impact acrylonitrile butadiene styrene (ABS plastic) |
Environmental Operating Range |
|
Frequency Control |
FM |
Frequency Range |
900 MHz Unlicensed ISM Band |
Identifier |
64-bit unique ID |
Output to PC |
Communicates to host via Ethernet (TCP/IP and UDP) Static or Dynamic IP Identification. Ethernet Receiver can send sensor packets to 3 UDP destinations |
Power |
5VDC 500mA External power supply or Power Over Ethernet (PoE) |
Range |
Indoor: 13000 Feet (396 Meters) line of sight max. |
Serial Data Baud Rate |
19,200bps |
Receiver Type |
900 MHz Receiver (decodes CRC-16 error encoded radio packets) |
Rx (Reception) Sensitivity |
-110dB |
Sensor Monitoring Capacity |
100 Sensors (max) |
Serial Data Interface Type |
Communicates to host via Ethernet LAN |
Size |
4"W x 3"L x 1.4"H ( |
Storage Conditions |
|
Certification |
CE mark, FCC, CFR Part 15 compliant |
|
Revision 03H1 |
